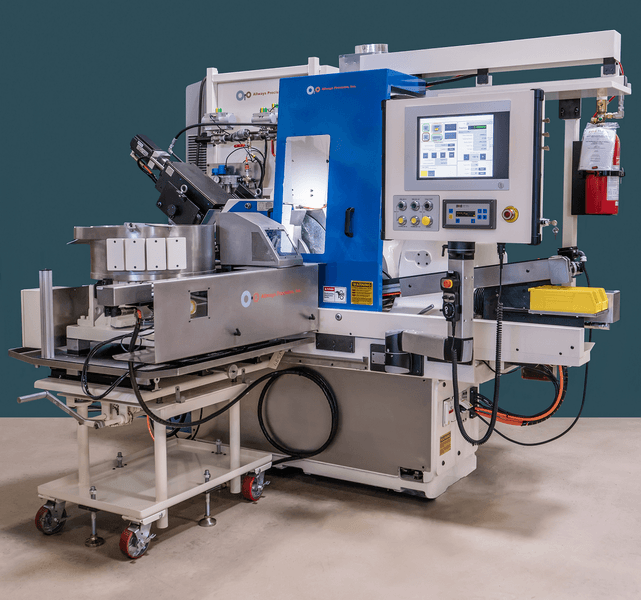

Cincinnati #2OM CNC Centerless Grinder, Remanufactured, Up to 7-Axis, 24" Grinding Wheel

Manufacturer

CINCINNATI

Category

Grinding Machines

Type

GRINDERS, CENTERLESS, CNC

Stock

None

Model

#2OM

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

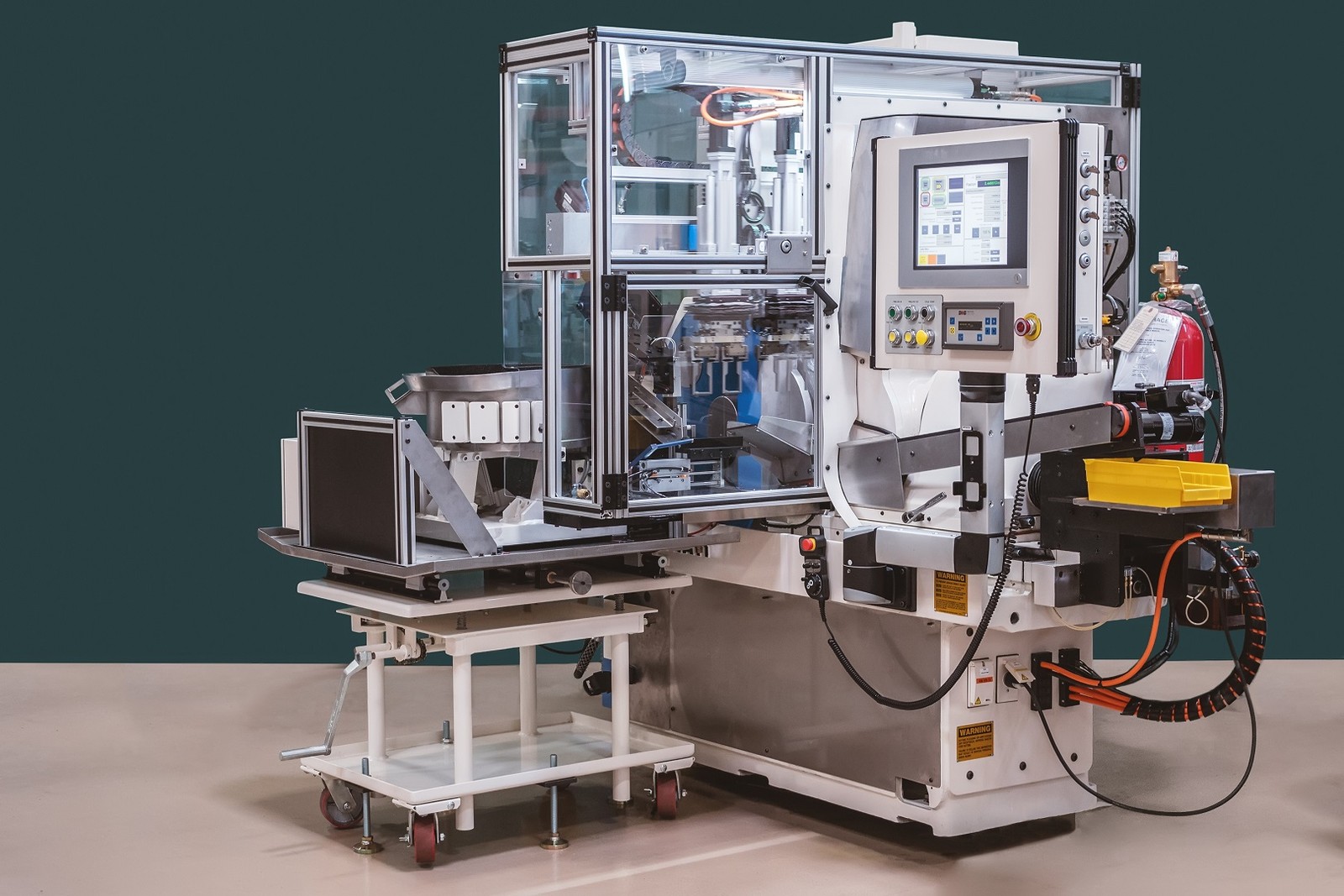

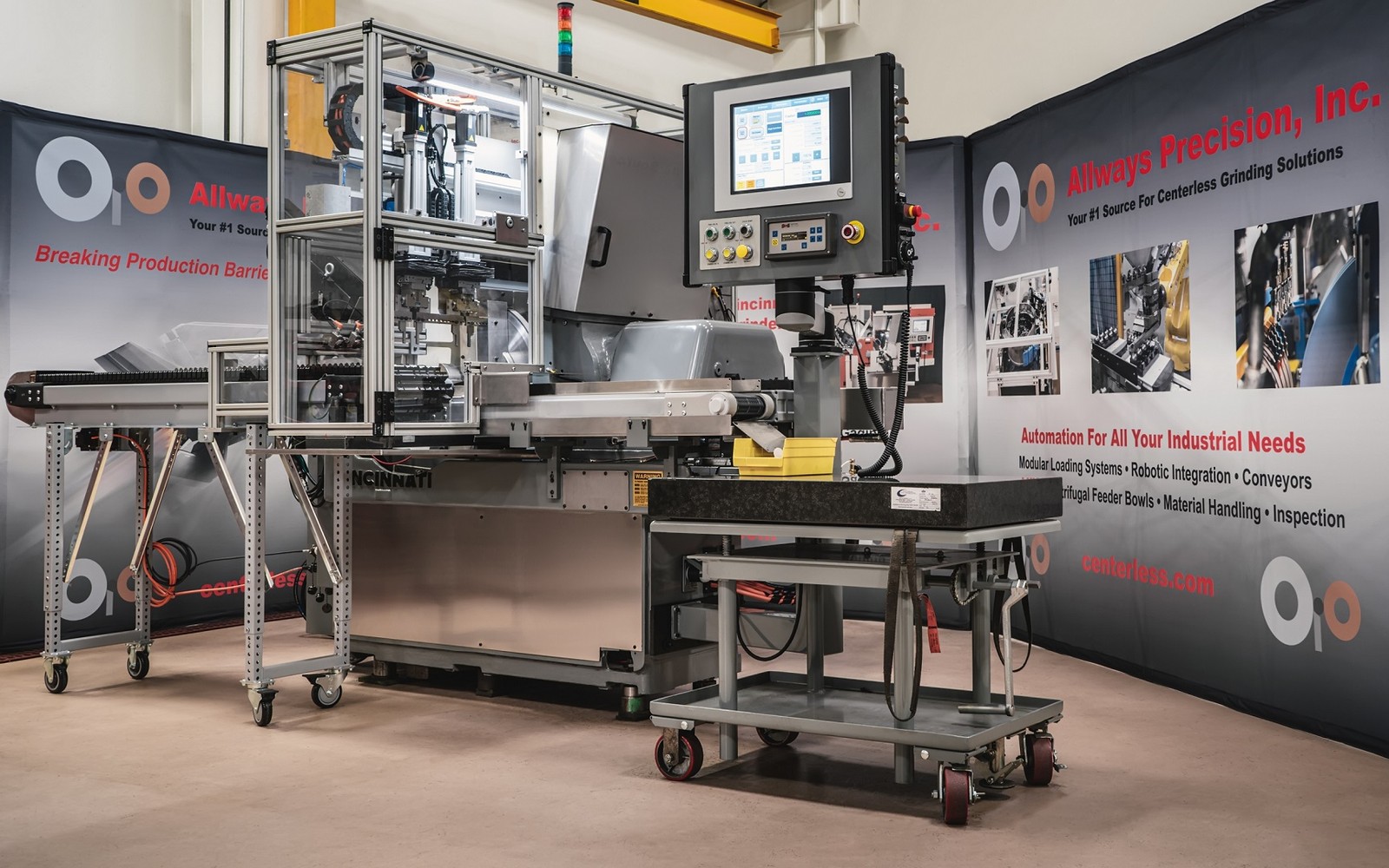

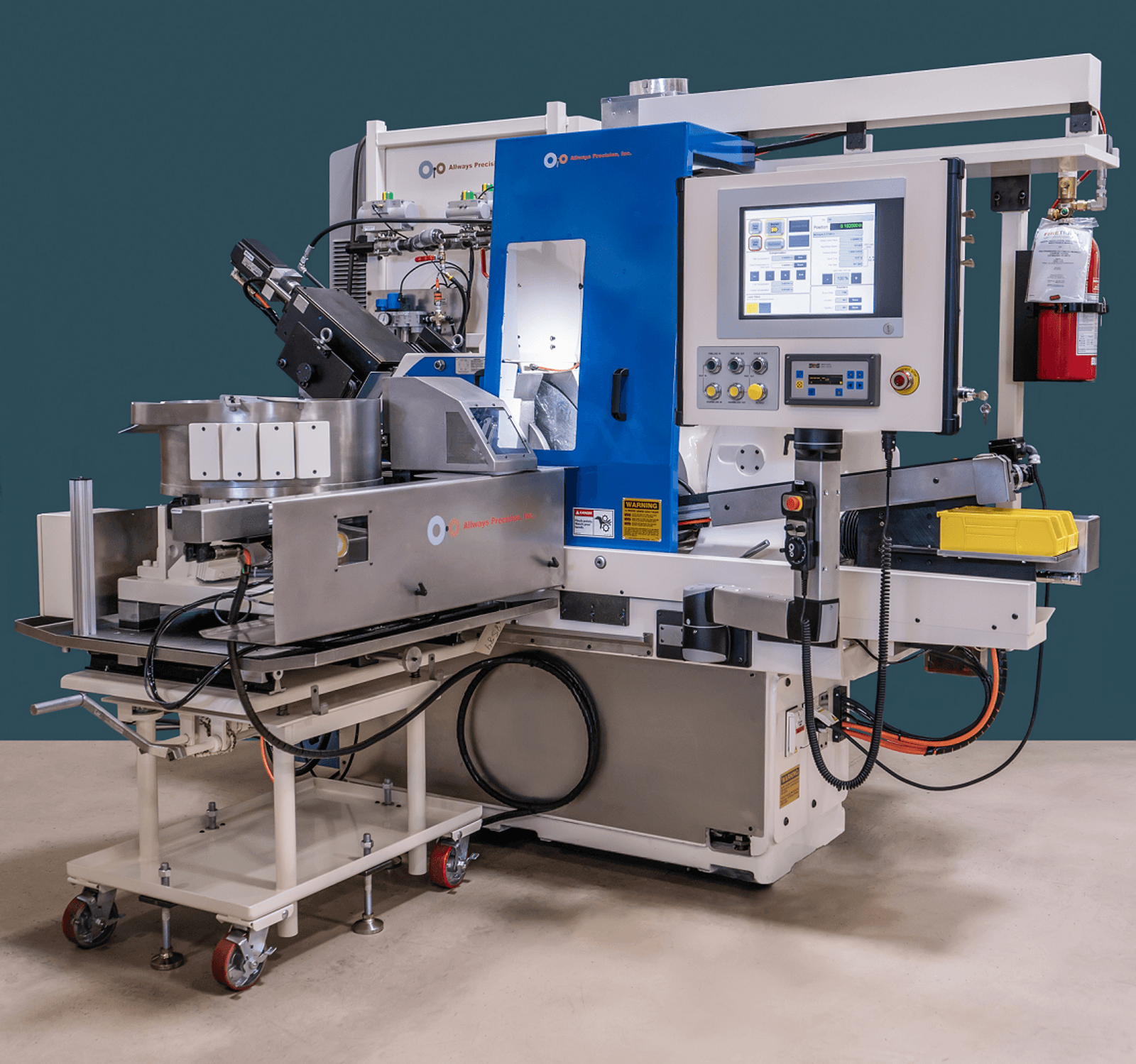

**Note Pictures Are Reference Only**

These machines are typically built to order per customer application. Our Remanufactured machines are completely stripped down to the bare casting and then rebuilt to the tightest tolerances in the industry. All ways are reground on in our in-house way grinders and hand scraped for a perfect it. All of our CNC machines are equipped with our conversational AP Grind software, meaning you don't need any G code knowledge to operate the machines.

Visit our new website www.centerless.com or www.allwaysprecision.com to learn more and visit our YouTube Page https://www.youtube.com/user/allwaysprecision for example videos.

General Specifications:
Diameter Capacity, Optimal: 0.040 to 1.5"
Diameter Capacity, Maximum: Up to 4"
Grinding Wheel Diameter, Minimum: 16"
Grinding Wheel Diameter, Maximum: 20" or 24"
Grinding Wheel Width, Maximum: 8"
Grinding Wheel Hole Diameter: 12"
Grinding Wheel Motor: 15hp standard
Grinding Wheel Speed, Maximum: 10,500 SFPM
Regulating Wheel Diameter, Minimum: 9.5"
Regulating Wheel Diameter, Maximum: 12" or 14″
Regulating Wheel, Maximum: 8"
Regulating Wheel Hole Diameter: 5"
Regulating Wheel Speeds, Range: 0 to 300 rpm
Regulating Wheel Motor: 1-1/2 hp
Static Stiffness, Approximately: 275,000 lbs
Machine Footprint, Approximately: 8’ x 5’ x 6’
Weight, Approximately 8,500 lbs.
